High-precision existing condition building surveys for space and building renovation:
We measure spaces and buildings of any type, use and size, and provide a clean set of existing condition floor plans in AutoCAD and PDF.
Existing floor plan are the basis for precision for design and construction; our customers are high-end architecture, interior design, building management, development firms and owners who have rated us 5 stars for precision and accuracy in documentation and drafting.
- Existing floor plans (Includes ceiling heights and window sizes and locations)

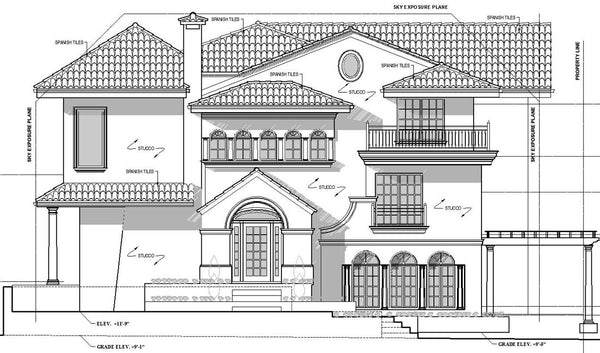

- Existing exterior façade elevations (All exteriors)
- Existing building sections (longitudinal & cross sections)
- Existing schematic floor to floor section (includes relationship to grade level at entry points)
- Existing roof plans
- Existing reflected Ceiling Plans (RCPs)
- Existing site plan (reference site plans for filing)
- Existing interior elevations (for high end designs)
- Existing sprinkler plans (Sprinkler head locations in relationship to floor plan)
- Existing electrical plans
- Existing illumination plans
Coverage within 50 miles of Manhattan, services in other areas must contact to verify availability and cost.
